VTV Valve is a leading manufacturer of quality valve products. Designed and engineered to the highest possible standards, our valve range is found in a substantial array of applications in almost all industries, from Petrochemical, Oil and Gas, Chemical, to power generation and Pulp & Paper.

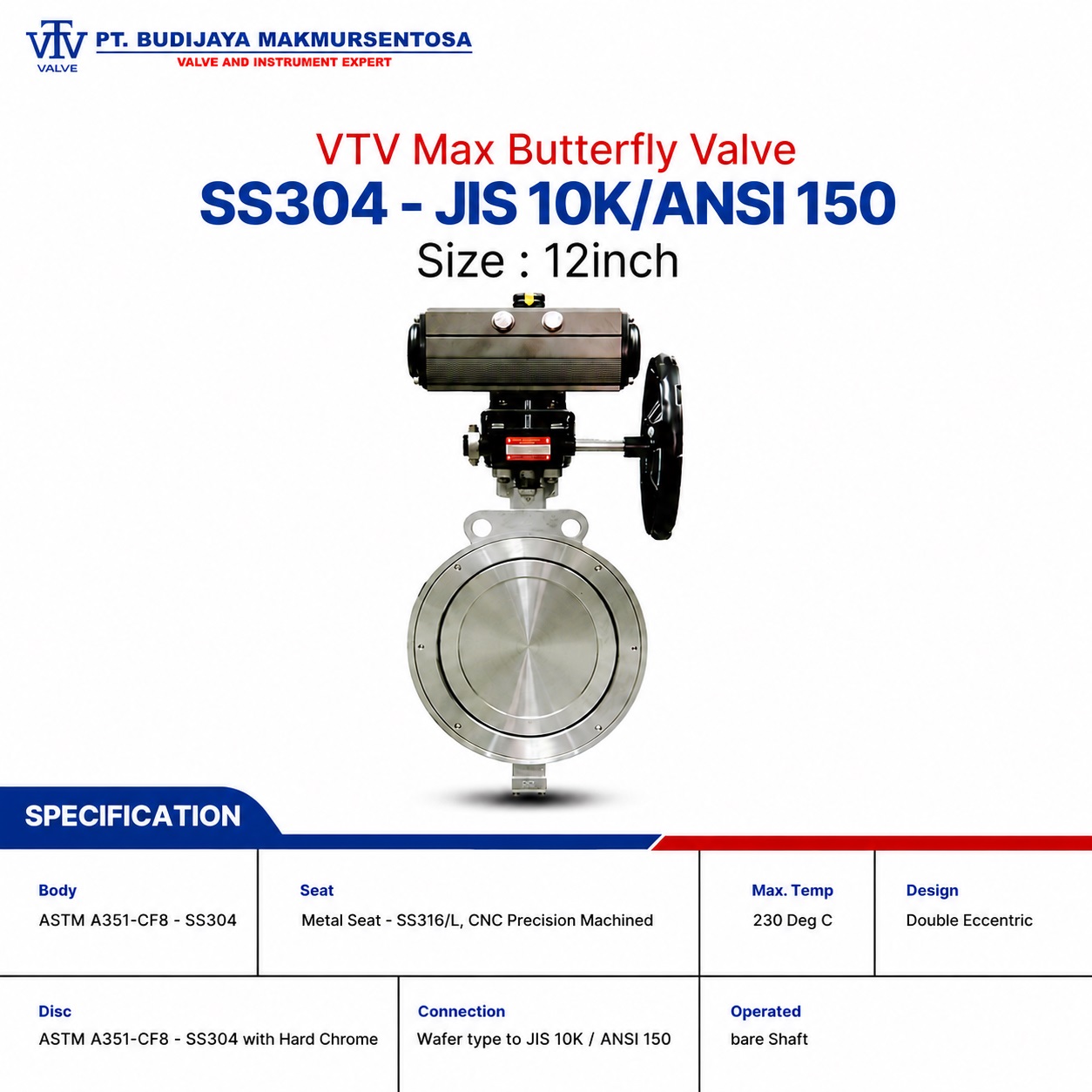

BUDIJAYA - VTV MAX High performance Butterfly Valve
Fig : MS Series
Body : ASTM A351-CF8 - SS304
Disc : ASTM A351-CF8 - SS304 with Hard Crome
Seat : Metal Seat - SS316/L, CNC Precision Machined
Connection : Wafer type to JIS 10K / ANSI 150
Max. Temp : 230 Deg C,
Operated : bare Shaft
Design : Double Eccentric
c/w Bracket & Adaptor
Size : 6"
c/w BUDIJAYA - VTV Double Acting Pneumatic Actuator
Air supply : 3-8kg/cm2
ISO Mounting 5211 , with 1.000.000 life cycles
Internal anodized for long life services
BMD 125
ready 3-5days for assembly
Untuk pemesanan sebelum jam 14.00 WIB akan di kirimkan hari yang sama.
Untuk pemesanan di atas jam 14.00 WIB akan di kirimkan besok.
Hari libur nasional / sabtu - minggu tidak ada pengiriman.
Operasional : Senin-Jumat 08.30-17.15
VTV-MAX- is OEM from Korea, it is special design for Palm Oil, Pulp and Paper, and Sugar mill industries
Untuk informasi produk dan cara pembelian, silahkan hubungi kontak di bawah ini.
Didukung Oleh :
BUDIJAYA Group is The leader in quality industrial valves & Instrument Solution Especialist in palm oil & paper mills.
