VTV Valve is a leading manufacturer of quality valve products. Designed and engineered to the highest possible standards, our valve range is found in a substantial array of applications in almost all industries, from Petrochemical, Oil and Gas, Chemical, to power generation and Pulp & Paper.

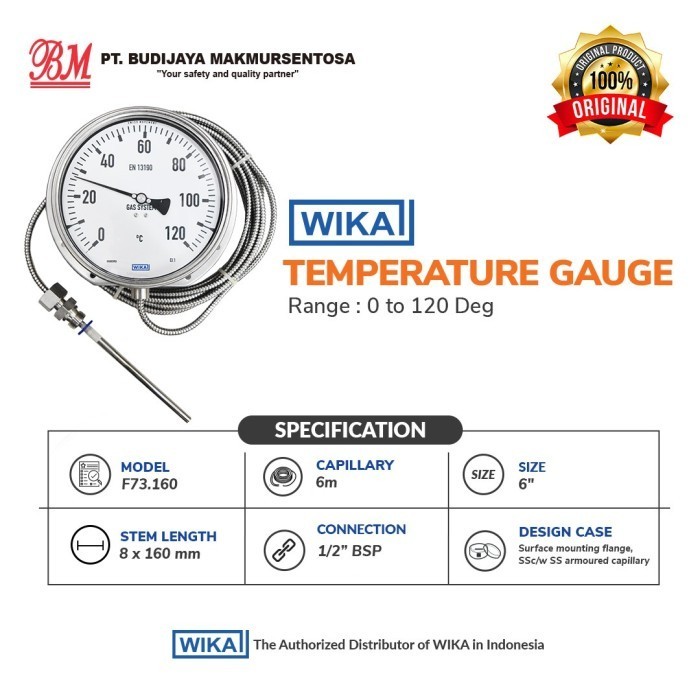

Specification WIKA F73 :Gas actuated thermometer, stainless steel series
Specifications according to data sheet: TM 73.01
Case: stainless steel
Stem material: stainless steel
Model: F73.160, nominal size 160, with capillary
Unit: C
Connection design: 4, compression fitting, sliding on stem
Process connection: 1/2" BSP
Stem diameter: 8 mm
Insertion length L1: 160 mm
Capillary: stainless steel armoured capillary
Capillary length: 6 Meter
Design of case mounting: Surface mounting flange, stainless steel
Accuracy class: class 1 per EN 13190
Ingress protection: IP 65
Window: laminated safety glass
Case: Stainless steel
Connector location: radial bottom
Manufacturer logo: WIKA
serialnumber on dial: Serial number ...
Permissible ambient temperature: -40 +60 C
Untuk pemesanan sebelum jam 14.00 WIB akan di kirimkan hari yang sama.
Untuk pemesanan di atas jam 14.00 WIB akan di kirimkan besok.
Hari libur nasional / sabtu - minggu tidak ada pengiriman.
Operasional : Senin-Jumat 08.30-17.15
WIKA a strong and reliable partner for all the requirements of industrial measurement technology, today and in the future.
Untuk informasi produk dan cara pembelian, silahkan hubungi kontak di bawah ini.
Didukung Oleh :
BUDIJAYA Group is The leader in quality industrial valves & Instrument Solution Especialist in palm oil & paper mills.
